Health, Safety, and Environment (HSE) signage is not optional in the UAE. It is a legal requirement on every construction site, industrial facility, and many commercial premises — and the penalties for non-compliance can be severe.

Beyond compliance, good HSE signage saves lives. In Dubai's construction and industrial sectors, clear, well-placed safety signs are a critical layer of protection for workers, visitors, and the public.

This guide covers the key requirements, sign types, and material specifications for HSE and road safety signage in Dubai and the wider UAE.

HSE signage in the UAE is governed by several overlapping regulatory bodies:

Dubai Municipality (DM) — sets requirements for construction site safety signage, hoarding, and public safety in Dubai

Abu Dhabi Department of Municipalities and Transport (DMT) — equivalent authority for Abu Dhabi

Ministry of Human Resources and Emiratisation (MOHRE) — sets workplace safety requirements including signage

Dubai Civil Defence (DCD) — fire safety signage requirements for all buildings

TRAKHEES — regulates safety in Dubai's free zones (JAFZA, Dubai Maritime City, etc.)

ISO 7010 — the international standard for safety signs, widely referenced in UAE specifications. Most UAE projects specify ISO 7010-compliant signs.

Indicate actions that are not permitted. Red circular border with a diagonal red line.

Examples: No smoking, No entry, No mobile phones, No unauthorised access

Alert to hazards. Yellow triangular background with black symbol and border.

Examples: Electrical hazard, Forklift operating, Overhead loads, Slippery surface, Chemical hazard

Indicate actions that must be taken. Blue circular background with white symbol.

Examples: Hard hat required, Safety boots required, High-visibility vest required, Eye protection required

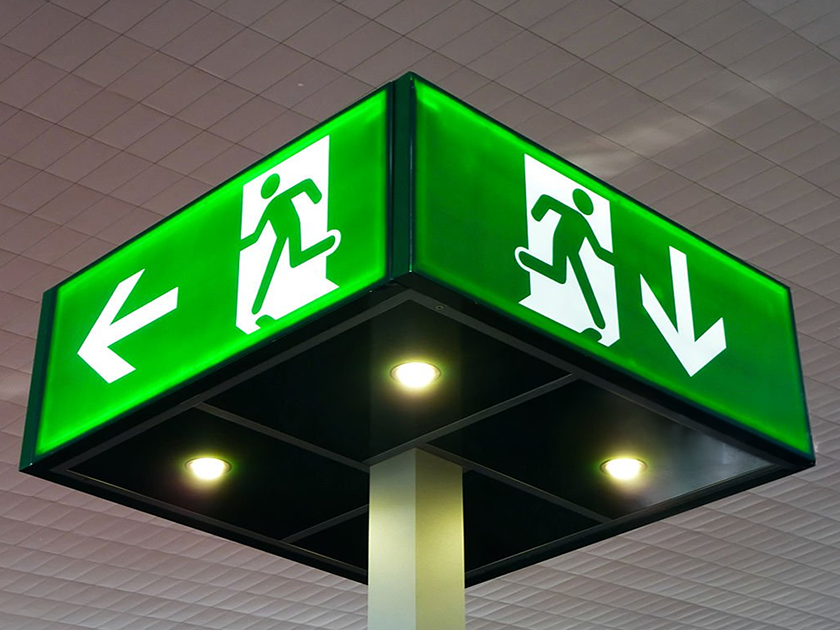

Indicate emergency exits, first aid, and safe conditions. Green rectangular background with white symbol.

Examples: Emergency exit, First aid, Assembly point, Eye wash station

Indicate fire equipment and fire escape routes. Red rectangular background with white symbol.

Examples: Fire extinguisher, Fire hose reel, Fire alarm call point, Fire exit

Road safety signs in the UAE follow the Gulf Cooperation Council (GCC) standard, which is closely aligned with the Vienna Convention on Road Signs and Signals.

Required for any road works, construction activity near roads, or temporary traffic diversions in Dubai. Must comply with Roads and Transport Authority (RTA) requirements.

Key signs:

• Road works ahead
• Speed limit (temporary)
• Lane closure
• Diversion
• Stop/give way (for traffic management personnel)

Material requirement: Retroreflective sheeting (Class 1 minimum; Class 2 for high-speed roads). All temporary road signs in Dubai must use retroreflective material for night visibility.

Manufactured to RTA specifications. Aluminium substrate with retroreflective vinyl sheeting. Arabic and English text required for all regulatory and warning signs in Dubai.

Yellow and black chevron marking on bollards and kerbs. White and yellow road markings. Sign Design Dubai handles bollard painting and road marking as part of our HSE signage service.

Dubai's climate imposes specific requirements on HSE signage materials:

Substrate: Aluminium (1.5mm–3mm) for permanent signs. Rigid PVC or Corflute for temporary signs.

Graphics: UV-resistant vinyl or direct UV print. Standard vinyl will fade and delaminate within 12–18 months in UAE UV conditions. Specify UV-stable inks and UV overlaminate.

Retroreflective sheeting: For road safety signs, specify 3M Diamond Grade or equivalent (Class 2 retroreflective) for high-speed roads; 3M Engineer Grade (Class 1) for lower-speed applications.

Fixings: Stainless steel or hot-dip galvanised steel for all outdoor fixings. Standard zinc-plated fixings corrode rapidly in UAE humidity.

Post material: Galvanised steel or aluminium for sign posts. Specify anti-vandal fixings in public areas.

All regulatory and safety signs in Dubai must be bilingual — Arabic and English. This applies to:

• Construction site safety signs
• Road safety signs
• Building safety signs (fire exits, emergency assembly points)
• Workplace mandatory signs

Sign Design Dubai produces all HSE signage in bilingual format as standard.

For a typical mid-size construction site in Dubai:

• Site entrance signs (project name, contractor, emergency contacts)
• Mandatory PPE signs (hard hat, safety boots, high-vis vest, eye protection)
• Prohibition signs (no smoking, no unauthorised access)
• Warning signs (electrical hazard, overhead loads, forklift operating)
• Emergency assembly point
• First aid location

Typical cost: AED 3,500–AED 8,000 for a standard package

For a warehouse or manufacturing facility in DIP, JAFZA, or similar:

• Entrance and access control signs
• Chemical and hazardous material signs
• Fire safety signs (extinguisher locations, fire exits, assembly point)
• Forklift and pedestrian zone markings
• Emergency contact boards

Typical cost: AED 5,000–AED 15,000 depending on facility size

Get a quote for your HSE signage package or call +971 4 255 0366. We supply and install HSE signage across Dubai and all UAE emirates.
